Solar Panels - Kaneka Thin-Film PV
<<Back

Superior Performance Under High-Temperature Conditions

Crystalline-Si PV modules lose some power-generating capability with rises in temperatures. But Amorphous-Si PV modules generate higher power during summer time. Amorphous-Si PV modules can deliver maximum performance during summer when the electricity is needed most for air-conditioners in houses and offices.

*Kaneka Silicon PV's generated watt-power is approximately same as that of other crystalline silicon PVs during the winter months, but in summer the Kaneka Silicon PV generates significantly more power compared to other crystalline silicon PVs.
Source: "NEDO/Ritsumeikan University Module Field Test and Operational Analysis" presented at the International PV SEC-11, Sapporo, Hokkaido, Japan, 1999.
Installation location: Kusatsu, Shiga Prefecture Japan Slope angle: 15.3 degree

*NEDO : New Energy and Industrial Technology Development Organization

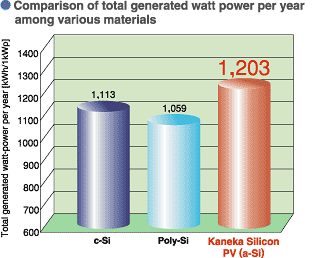

Better Actual Watt-Power Generation Compared With Crystalline Silicon PV Modules

Kaneka's amorphous silicon PV module (a-Si) has superior light absorption per nominal watt power. Compared with mono-crystalline silicon PV modules (c-Si) or poly-crystalline silicon PV modules (poly-Si), it generates considerably more power per nominal watt power.

Assuming that the total solar radiation per year (1.323kWh/m2) is 100%, Kaneka Silicon PV can produce 90.95% of actually generated watt-power, much higher than that of other crystalline silicon PVs (80 to 84%).
Source: "NEDO/Ritsumeikan University Module Field Test and Operational Analysis" presented at the International PV SEC-11, Sapporo, Hokkaido, Japan, 1999. Installation location: Kusatsu, Shiga Prefecture Japan Slope angle: 15.3 degree

Environmetally Friendly

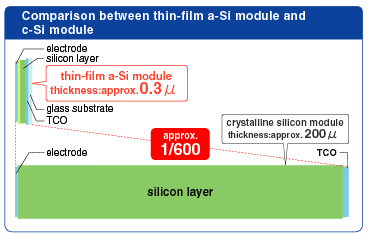

The single junction a-Si layer can be made extremely thin.
The thickness of a-Si cell is 0.3, which is 1/600 of that of crystalline silicon cell (approx. 200).

This means that a-Si cell less material and energy thereby enabling high productivity for mass production.
Shorter Energy Pay-back Time (EPT)

EPT is the time a PV module to "pay back" the energy used in its manufacture by its own power generation.
The EPT of amorphous-Si PV is 1.6 years, which is approximately 6 months shorter than that of crystalline silicon PV (2.2 years).
EPT is one of the most important aspects when evaluating the ecological benefit of PV systems.
